| Category | Parameter | Category | Parameter |
| Model | KZ-10C | Air pressure application range | 0.05-0.5Mpa |
| Input voltage | DC24V | Ozone concentration |
below 0.03ppm (distance 150mm) |
| lon balance | Automatic ion balance system 0±10V | Working temperature | 0-40℃ |
| Current | 60mA | Working humidity |
30- 70% RH (No condensation or water droplets) |
| Filter precision | 40-60μm | Tube diameter | φ6 windpipe |
| Weight |
90g |
Product Size |
105 * 56 * 22 mm |

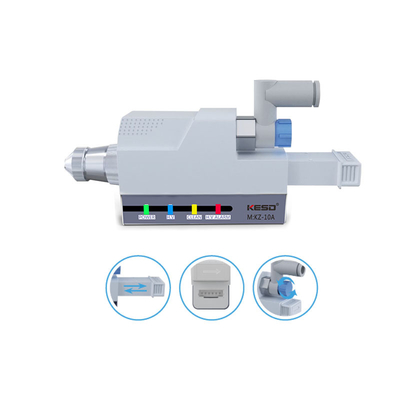

1.Ion balance:0±10V
2.Metal painting housing grounding shield
3.Different nozzle heads optional
4.Built-in high voltage system,safe
5.High voltage linear transmission,high efficiency
6.Ultra-small-size,weight is only 90 g, thickness is only 22 mm
7.Special tungsten alloy discharge needle for longer service time.
8.Indicator for high voltage operating alarm of both normal and abnormal condition .
Working voltage: DC24V. Testing voltage: ±1000V - ±100V. Temperature: 23℃±2℃
| Distance |
Decay time (+/-) |
Ion balance (+/-) |
Remark |
| 150mm | 0.5s/-0.6s | 0±10V |
1.Firstly, be sure to connect compressed air, then turn on the power.
|
| 300mm | 0.8s/-0.9s | 0±10V |
01 Indicators
Power indicator (Green)
High voltage normal operation (Green)
High voltage abnormal operation (Red)
Alarm when HV system abnormal
02 High voltage box
Built-in high voltage system, more safe and convenient.
Inside the ceramic HV generator and tungsten alloy discharge needle.
The inner wall of the housing is sprayed with metal painting to make the whole body grounding shield.
03 Nozzle
Variety of nozzle heads can be choose according to the anti static requirements and the applied situation.
KESD is a famous leading brand in China which specialized in manufacture static eliminate equipments for 18 years.
We have long-term good cooperation with our customers such as HUAWEI,Oppo,Panasonic, Sony, Foxconn, TCL ,BYD etc.
KESD only focus on full series static eliminators including ionizing air blower, ionizing air bar, ionizing air nozzle/ gun and ionizing dust collecting box, ionizer Fan filter Unit( FFU),ESD detector, ESD Wireless monitor system etc.
Our product design idea is people-oriented, we offer safest solution, convenient for maintenance.
KESD own first domestic patent for automatic clean ion blower in 2014.
KESD own first domestic patent for ESD wireless monitor system in 2014.
KESD R & D funding is TOP THREE in China, own more than 100 items patent, pioneering and innovative. leading the new tech.
